Piggy Back Disconnector

All Products > Terminal > Piggy Back Disconnector > Piggy Back Disconnector

Piggy Back Disconnector

  • PVC Flared
  • Nylon Molded
  • PC Molded
  • PVC Molded
  • PVC Flared with Copper Tube
Item No. Wire Range
AWG/mm²
To Fit
Tab Size

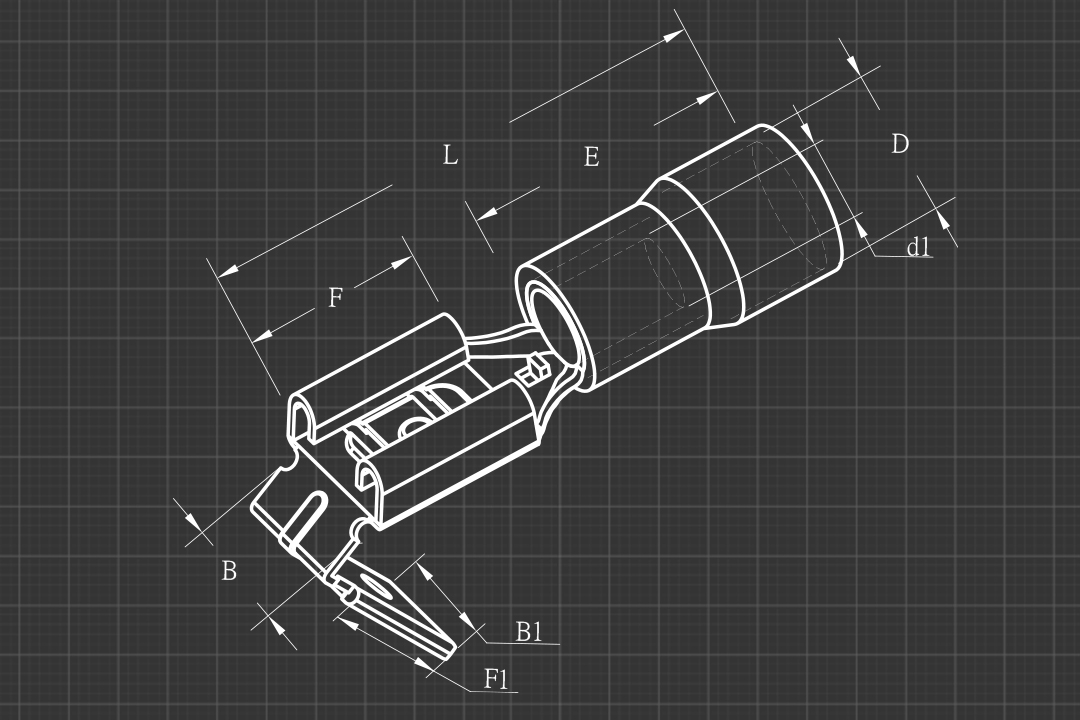

b B1 L F F1 E D d1
VD1-6.3FM 22~16 AWG
0.5~1.5mm²
0.32*250 (6.3*0.8) .260(6.6) .250(6.3) .866(22.0) .315(8.0) .323(8.2) .349(10.0) .134(3.4) .075(1.9)
VD2-6.3FM 16~14 AWG
1.5~2.5mm²
0.32*250 (6.3*0.8) .260(6.6) .250(6.3) .866(22.0) .315(8.0) .323(8.2) .349(10.0) .169(4.3) .102(2.6)
VD5-6.3FM 12~10 AWG
4~6mm²
0.32*250 (6.3*0.8) .260(6.6) .250(6.3) .925(23.5) .315(8.0) .323(8.2) .492(12.5) .217(5.5) .142(3.6)
Item No. Wire Range
AWG/mm²
To Fit
Tab Size
b B1 L F F1 E D d1
IND1-6.3FM 22~16 AWG
0.5~1.5mm²
0.32*250 (6.3*0.8) .260(6.6) .250(6.3) .866(22.0) .315(8.0) .323(8.2) .349(10.0) .157(4.0) .075(1.9)
IND2-6.3FM 16~14 AWG
1.5~2.5mm²
0.32*250 (6.3*0.8) .260(6.6) .250(6.3) .866(22.0) .315(8.0) .323(8.2) .349(10.0) .177(4.5) .102(2.6)
IND5-6.3FM 12~10 AWG
4~6mm²
0.32*250 (6.3*0.8) .260(6.6) .250(6.3) .925(23.5) .315(8.0) .323(8.2) .492(12.5) .256(6.5) .142(3.6)
Item No. Wire Range
AWG/mm²
To Fit
Tab Size
b B1 L F F1 E D d1
IMD1-6.3FM 22~16 AWG
0.5~1.5mm²
0.32*250 (6.3*0.8) .260(6.6) .250(6.3) .866(22.0) .315(8.0) .323(8.2) .349(10.0) .157(4.0) .075(1.9)
IMD2-6.3FM 16~14 AWG
1.5~2.5mm²
0.32*250 (6.3*0.8) .260(6.6) .250(6.3) .866(22.0) .315(8.0) .323(8.2) .349(10.0) .177(4.5) .102(2.6)
IMD5-6.3FM 12~10 AWG
4~6mm²
0.32*250 (6.3*0.8) .260(6.6) .250(6.3) .925(23.5) .315(8.0) .323(8.2) .492(12.5) .252(6.5) .142(3.6)
Item No. Wire Range
AWG/mm²
To Fit
Tab Size
b B1 L F F1 E D d1
IVD1-6.3FM 22~16 AWG
0.5~1.5mm²
0.32*250 (6.3*0.8) .260(6.6) .250(6.3) .866(22.0) .315(8.0) .323(8.2) .349(10.0) .157(4.0) .075(1.9)
IVD2-6.3FM 16~14 AWG
1.5~2.5mm²
0.32*250 (6.3*0.8) .260(6.6) .250(6.3) .866(22.0) .315(8.0) .323(8.2) .349(10.0) .177(4.5) .102(2.6)
IVD5-6.3FM 12~10 AWG
4~6mm²
0.32*250 (6.3*0.8) .260(6.6) .250(6.3) .925(23.5) .315(8.0) .323(8.2) .492(12.5) .252(6.4) .142(3.6)
Item No. Wire Range
AWG/mm²
To Fit
Tab Size
b B1 L F F1 E D d1
VD1-6.3FMC 22~16 AWG
0.5~1.5mm²
0.32*250 (6.3*0.8) .260(6.6) .250(6.3) .866(22.0) .315(8.0) .323(8.2) .349(10.0) .165(4.2) .075(1.9)
VD2-6.3FMC 16~14 AWG
1.5~2.5mm²
0.32*250 (6.3*0.8) .260(6.6) .250(6.3) .866(22.0) .315(8.0) .323(8.2) .349(10.0) .197(5.0) .102(2.6)
VD5-6.3FMC 12~10 AWG
4~6mm²
0.32*250 (6.3*0.8) .260(6.6) .250(6.3) .925(23.5) .315(8.0) .323(8.2) .492(12.5) .256(6.5) .142(3.6)
