DIN 46235

DIN 46235 is designed for high voltage applications up to 33kv. Manufactured from high purity copper tube & tin plated. The extended barrel enhances both electrical and mechanical performance.

Item No. Conductor
Section

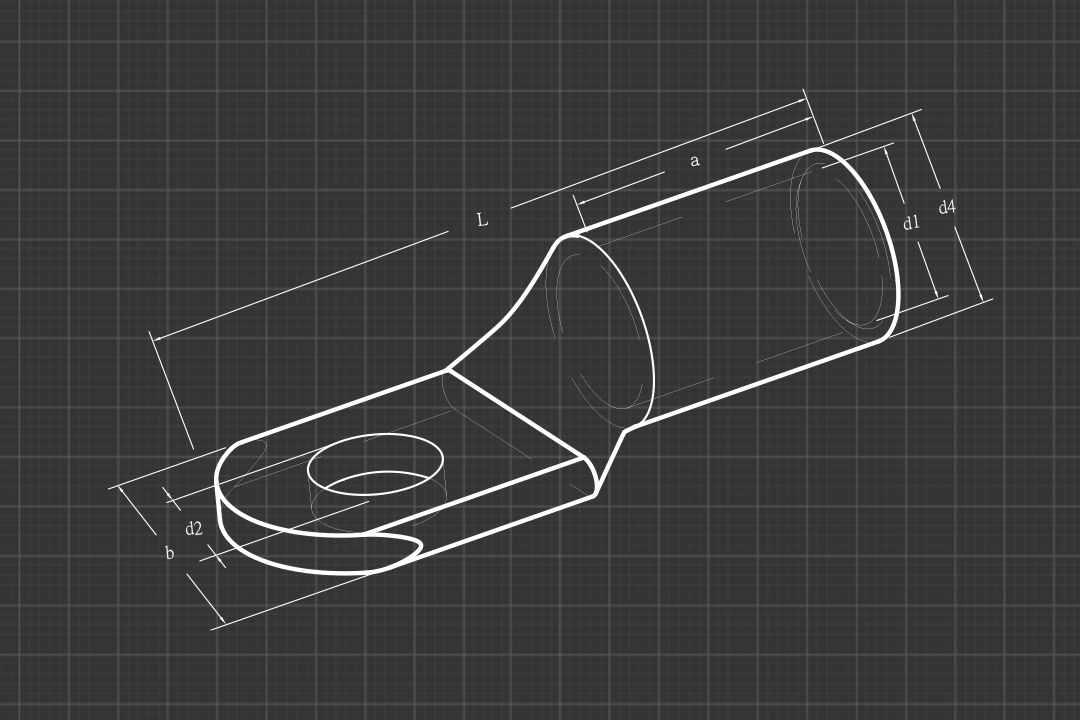

Bolt d1 d2 d4 b a L
DIN6-5 6 M5 3.8 5.3 5.5 8.5 10 30.5
DIN6-6 6 M6 3.8 6.4 5.5 8.5 10 31.5
DIN6-8 6 M8 3.8 8.4 5.5 13.5 10 34
DIN10-5 10 M5 4.5 5.3 6 9 10 34
DIN10-6 10 M6 4.5 6.4 6 9 10 34.5
DIN10-8 10 M8 4.5 8.4 6 13 10 37
DIN16-6 16 M6 5.5 6.4 8.5 13 20 43.5
DIN16-8 16 M8 5.5 8.4 8.5 13 20 46
DIN16-10 16 M10 5.5 10.5 8.5 17 20 48
DIN16-12 16 M12 5.5 13 8.5 18 20 49
DIN25-6 25 M6 7 6.4 10 14 20 45.5
DIN25-8 25 M8 7 8.4 10 16 20 48
DIN25-10 25 M10 7 10.5 10 17 20 50
DIN25-12 25 M12 7 13 10 19 20 51
DIN35-6 35 M6 8.2 6.4 12.5 17 20 49.5
DIN35-8 35 M8 8.2 8.4 12.5 17 20 52
DIN35-10 35 M10 8.2 10.5 12.5 19 20 54
DIN35-12 35 M12 8.2 13 12.5 21 20 55
DIN35-14 35 M14 8.2 15 12.5 21 20 56.5
DIN50-8 50 M8 10 8.4 14.5 20 28 62
DIN50-10 50 M10 10 10.5 14.5 22 28 64
DIN50-12 50 M12 10 13 14.5 24 28 65
DIN50-14 50 M14 10 15 14.5 24 28 66.5
DIN50-16 50 M16 10 17 14.5 28 28 68
DIN70-8 70 M8 11.5 8.4 16.5 24 28 65
DIN70-10 70 M10 11.5 10.5 16.5 24 28 67
DIN70-12 70 M12 11.5 13 16.5 24 28 68
DIN70-14 70 M14 11.5 15 16.5 24 28 69.5
DIN70-16 70 M16 11.5 17 16.5 30 28 71
DIN95-8 95 M8 13.5 8.4 19 28 35 77
DIN95-10 95 M10 13.5 10.5 19 28 35 77
DIN95-12 95 M12 13.5 13 19 28 35 78
DIN95-14 95 M14 13.5 15 19 28 35 79.5
DIN95-16 95 M16 13.5 17 19 32 35 81
DIN120-10 120 M10 15.5 10.5 21 32 35 85
DIN120-12 120 M12 15.5 13 21 32 35 86
DIN120-14 120 M14 15.5 15 21 32 35 88
DIN120-16 120 M16 15.5 17 21 32 35 89
DIN120-20 120 M20 15.5 21 21 38 35 91
DIN150-10 150 M10 17 10.5 23.5 34 35 93
DIN150-12 150 M12 17 13 23.5 34 35 94
DIN150-14 150 M14 17 15 23.5 34 35 97
DIN150-16 150 M16 17 17 23.5 34 35 97
DIN150-20 150 M20 17 21 23.5 40 35 99
DIN185-10 185 M10 19 10.5 25.5 37 40 97
DIN185-12 185 M12 19 13 25.5 37 40 98
DIN185-14 185 M14 19 15 25.5 37 40 101
DIN185-16 185 M16 19 17 25.5 37 40 101
DIN185-20 185 M20 19 21 25.5 40 40 103
DIN240-12 240 M12 21.5 13 29 42 40 108
DIN240-14 240 M14 21.5 15 29 42 40 111
DIN240-16 240 M16 21.5 17 29 42 40 111
DIN240-20 240 M20 21.5 21 29 45 40 113
DIN300-12 300 M12 24.5 13 32 48 50 119
DIN300-14 300 M14 24.5 15 32 48 50 119
DIN300-16 300 M16 24.5 17 32 48 50 119
DIN300-20 300 M20 24.5 21 32 48 50 122
DIN400-14 400 M14 27.5 15 38.5 55 70 140
DIN400-16 400 M16 27.5 17 38.5 55 70 140
DIN400-20 400 M20 27.5 21 38.5 55 70 140
DIN500-16 500 M16 31 17 42 60 70 150
DIN500-20 500 M20 31 21 42 60 70 150
DIN625-16 625 M16 34.5 17 44 64 80 160
DIN625-20 625 M20 34.5 21 44 64 80 160
DIN800-16 800 M16 40 17 52 75 100 195
