Butt Splice

All Products > Terminal > Butt Splice > Butt Splice

Butt Splice

  • Brass
  • Copper
  • Copper Tube
Item No. Wire Range
AWG/mm²

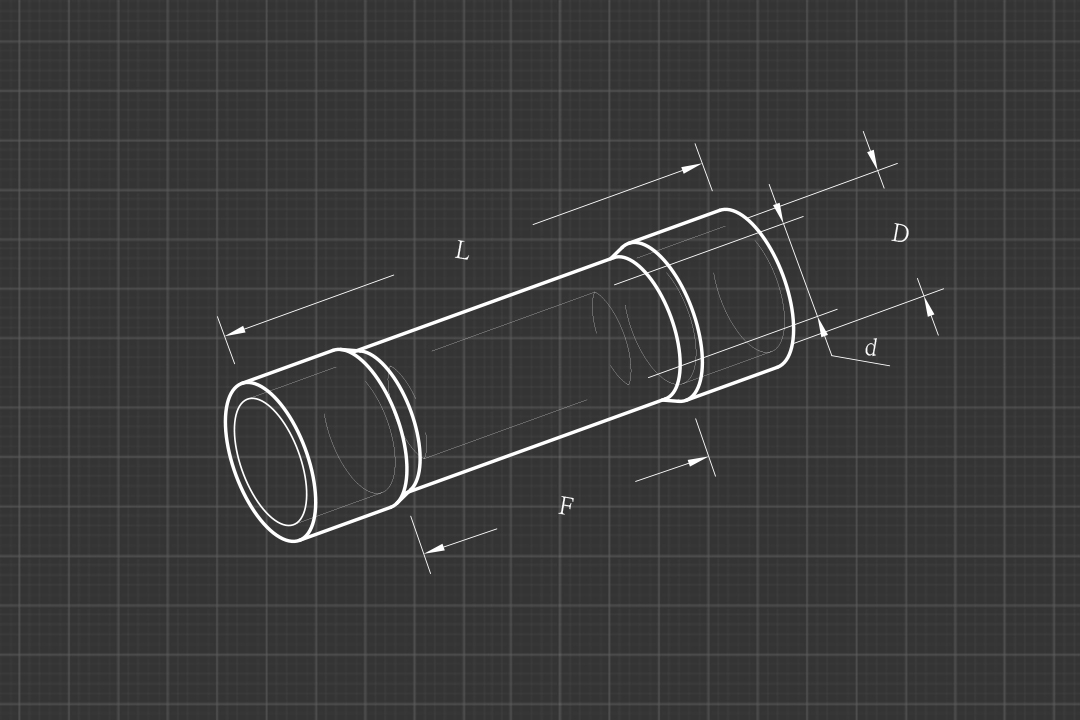

Insulation Type L F D d1 Copper Insert
VBS1 22~16 AWG
0.5~1.5mm²
Vinyl 1.024 (26.0) .591 (15.0) .150(3.8) .071 (1.8) Butted Seam Brass
VBS2 16~14 AWG
1.5~2.5mm²
Vinyl 1.024 (26.0) .591 (15.0) .169(4.3) .094 (2.4) Butted Seam Brass
VBS5 12~10 AWG
4~6mm²
Vinyl 1.024 (26.0) .591 (15.0) .236 (6.0) .138 (3.5) Butted Seam Brass
Item No. Wire Range
AWG/mm²
Insulation Type L F D d1 Copper Insert
INBS1 22~16 AWG
0.5~1.5mm²
Nylon 1.024 (26.0) .591 (15.0) .154 (3.9) .067 (1.7) Butted Seam Brass
INBS2 16~14 AWG
1.5~2.5mm²
Nylon 1.024 (26.0) .591 (15.0) .181 (4.8) .094 (2.4) Butted Seam Brass
INBS5 12~10 AWG
4~6mm²
Nylon 1.024 (26.0) .591 (15.0) .268 (6.8) .130 (3.3) Butted Seam Brass
Item No. Wire Range
AWG/mm²
Insulation Type L F D d1 Copper Insert
VBC1 22~16 AWG
0.5~1.5mm²
Vinyl 1.024 (26.0) .591 (15.0) .161 (4.1) .071 (1.8) Butted Seam Copper
VBC2 16~14 AWG
1.5~2.5mm²
Vinyl 1.024 (26.0) .591 (15.0) .181 (4.6) .098 (2.5) Butted Seam Copper
VBC5 12~10 AWG
4~6mm²
Vinyl 1.024 (26.0) .591 (15.0) .252 (6.4) .142 (3.6) Butted Seam Copper
Item No. Wire Range
AWG/mm²
Insulation Type L F D d1 Copper Insert
INBC1 22~16 AWG
0.5~1.5mm²
Nylon 1.024 (26.0) .591 (15.0) .126 (3.2) .067 (1.7) Butted Seam Copper
INBC2 16~14 AWG
1.5~2.5mm²
Nylon 1.024 (26.0) .591 (15.0) .154 (3.9) .094 (2.4) Butted Seam Copper
INBC5 12~10 AWG
4~6mm²
Nylon 1.024 (26.0) .591 (15.0) .213(5.4) .130 (3.3) Butted Seam Copper
Item No. Wire Range
AWG/mm²
Insulation Type L F D d1 Copper Insert
VB1 22~16 AWG
0.5~1.5mm²
Vinyl 1.024 (26.0) .591 (15.0) .161 (4.1) .071 (1.8) Seamless Copper Tube
VB2 16~14 AWG
1.5~2.5mm²
Vinyl 1.024 (26.0) .591 (15.0) .181 (4.6) .094 (2.4) Seamless Copper Tube
VB5 12~10 AWG
4~6mm²
Vinyl 1.024 (26.0) .591 (15.0) .252 (6.4) .142 (3.6) Seamless Copper Tube
Item No. Wire Range
AWG/mm²
Insulation Type L F D d1 Copper Insert
INB1 22~16 AWG
0.5~1.5mm²
Nylon 1.024 (26.0) .591 (15.0) .154 (3.9) .067 (1.7) Seamless Copper Tube
INB2 16~14 AWG
1.5~2.5mm²
Nylon 1.024 (26.0) .591 (15.0) .189 (4.8) .091 (2.3) Seamless Copper Tube
INB5 12~10 AWG
4~6mm²
Nylon 1.024 (26.0) .591 (15.0) .268 (6.8) .130 (3.3) Seamless Copper Tube
Item No. Wire Range
AWG/mm²
Insulation Type L F d1 Copper Insert
B1/ST 22~16 AWG
0.5~1.5mm²
Heat Shrink 1.417(36.0) .591(15.0) 0.071(1.8) Seamless Copper Tube
B2/ST 16~14 AWG
1.5~2.5mm²
Heat Shrink 1.417(36.0) .591(15.0) 0.100(2.55) Seamless Copper Tube
B5/ST 12~10 AWG
4~6mm²
Heat Shrink 1.614(41.0) .591(15.0) 0.142(3.6) Seamless Copper Tube
