M Butt Connector

The M Butt Connector are made from 99.9% purred high conductivity copper which gives the best electrical properties possible. Because the copper is oxygen free, M Butt connector are capable of withstanding a continuous operating temperature of 155°C, which is well above normal capabilities of copper links.

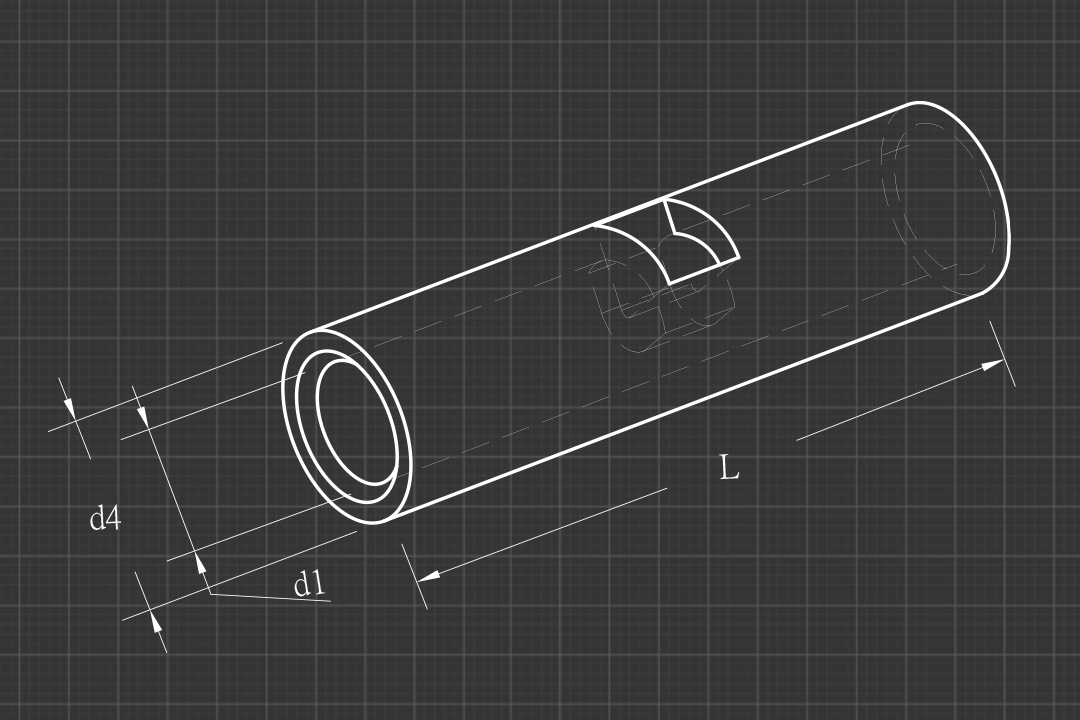

Item No. d1 d4 L
M1.5 2.4 4 22
M2.5 2.7 4.3 22
M4 3.3 5 25
M6 3.8 5.5 25
M10 4.7 6.9 25
M16 5.6 7.8 29
M25 7.1 9.5 29
M35 8.2 11 35
M40 9 11.2 35
M50 9.5 12.5 35
M70 11.5 15 45
M95 13.5 17 47
M120 15.6 20 52
M150 16.5 21 59
M185 18.4 23.6 65
M240 21.2 26.4 75
M300 23.4 28.6 90
M400 26.8 32.8 106
