Male Bullet Disconnector

Insulated Type

Item No. Wire Range
AWG/mm²

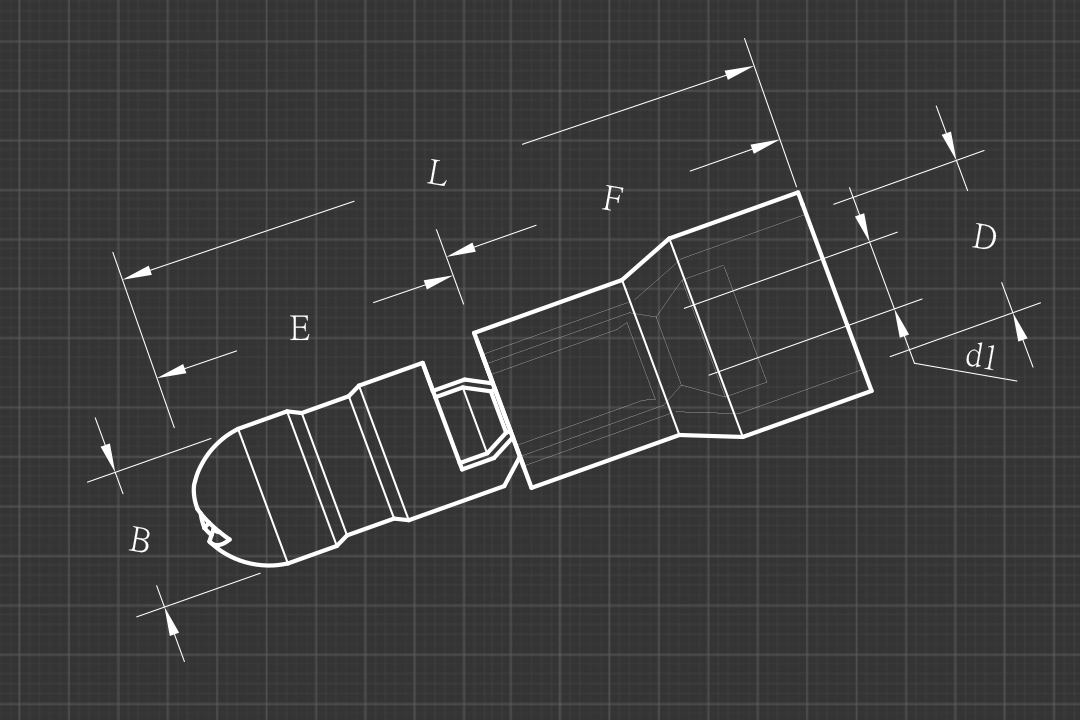

b L F E D d1
VG1-4M 22~16 AWG
0.5~1.5mm²
.156(3.96) .799(20.3) .335(8.5) .374(9.5) .134(3.4) .075(1.9)
VG2-4M 16~14 AWG
1.5~2.5mm²
.156(3.96) .799(20.3) .335(8.5) .374(9.5) .169(4.3) .102(2.6)
Item No. Wire Range
AWG/mm²
b L F E D d1
ING1-4M 22~16 AWG
0.5~1.5mm²
.156(3.96) .870(22.1) .335(8.5) .445(11.3) .169(4.3) .075(1.9)
ING2-4M 16~14 AWG
1.5~2.5mm²
.156(3.96) .870(22.1) .335(8.5) .445(11.3) .197(5.0) .102(2.6)
Item No. Wire Range
AWG/mm²
b L F E D d1
IMG1-4M 22~16 AWG
0.5~1.5mm²
.156(3.96) .799(20.3) .335(8.5) .374(9.5) .169(4.3) .075(1.9)
IMG2-4M 16~14 AWG
1.5~2.5mm²
.156(3.96) .799(20.3) .335(8.5) .374(9.5) .197(5.0) .102(2.6)
Item No. Wire Range
AWG/mm²
b L F E D d1
IVG1-4M 22~16 AWG
0.5~1.5mm²
.156(3.96) .870(22.1) .335(8.5) .445(11.3) .157(4.0) .075(1.9)
IVG2-4M 16~14 AWG
1.5~2.5mm²
.156(3.96) .870(22.1) .335(8.5) .445(11.3) .177(4.5) .102(2.6)
Item No. Wire Range
AWG/mm²
b L F E D d1
VG1-4MC 22~16 AWG
0.5~1.5mm²
.156(3.96) .819(20.8) .335(8.5) .394(10.0) .165(4.2) .075(1.9)
VG2-4MC 16~14 AWG
1.5~2.5mm²
.156(3.96) .819(20.8) .335(8.5) .394(10.0) .197(5.0) .102(2.6)
Item No. Wire Range
AWG/mm²
b L F E D d1
VG2-5M 16~14 AWG
1.5~2.5mm²
.195(4.95) .799(20.3) .335(8.5) .374(9.5) .169(4.3) .102(2.6)
VG5-5M 12~10 AWG
4~6mm²
.195(4.95) .917(23.3) .335(8.5) .492(12.5) .217(5.5) .142(3.6)
Item No. Wire Range
AWG/mm²
b L F E D d1
ING2-5M 16~14 AWG
1.5~2.5mm²
.195(4.95) .870(22.1) .335(8.5) .445(11.3) .197(5.0) .102(2.6)
ING5-5M 12~10 AWG
4~6mm²
.195(4.95) .982(24.95) .335(8.5) .557(14.15) .256(6.5) .142(3.6)
Item No. Wire Range
AWG/mm²
b L F E D d1
IMG2-5M 16~14 AWG
1.5~2.5mm²
.195(4.95) .799(20.3) .335(8.5) .374(9.5) .197(5.0) .102(2.6)
IMG5-5M 12~10 AWG
4~6mm²
.195(4.95) .917(23.3) .335(8.5) .492(12.5) .256(6.5) .142(3.6)
Item No. Wire Range
AWG/mm²
b L F E D d1
IVG2-5M 16~14 AWG
1.5~2.5mm²
.195(4.95) .870(22.1) .335(8.5) .445(11.3) .177(4.5) .102(2.6)
IVG5-5M 12~10 AWG
4~6mm²
.195(4.95) .982(24.95) .335(8.5) .557(14.15) .252(6.4) .142(3.6)
Item No. Wire Range
AWG/mm²
b L F E D d1
VG2-5MC 16~14 AWG
1.5~2.5mm²
.195(4.95) .870(22.1) .335(8.5) .445(11.3) .197(5.0) .102(2.6)
VG5-5MC 12~10 AWG
4~6mm²
.195(4.95) .937(23.8) .335(8.5) .512(13.0) .256(6.5) .142(3.6)
