Tubular Lug

All Products > Lug > Tubular Lug > TU Type

TU Type

TU type is the closer version of the T type that with a bellmouth end.

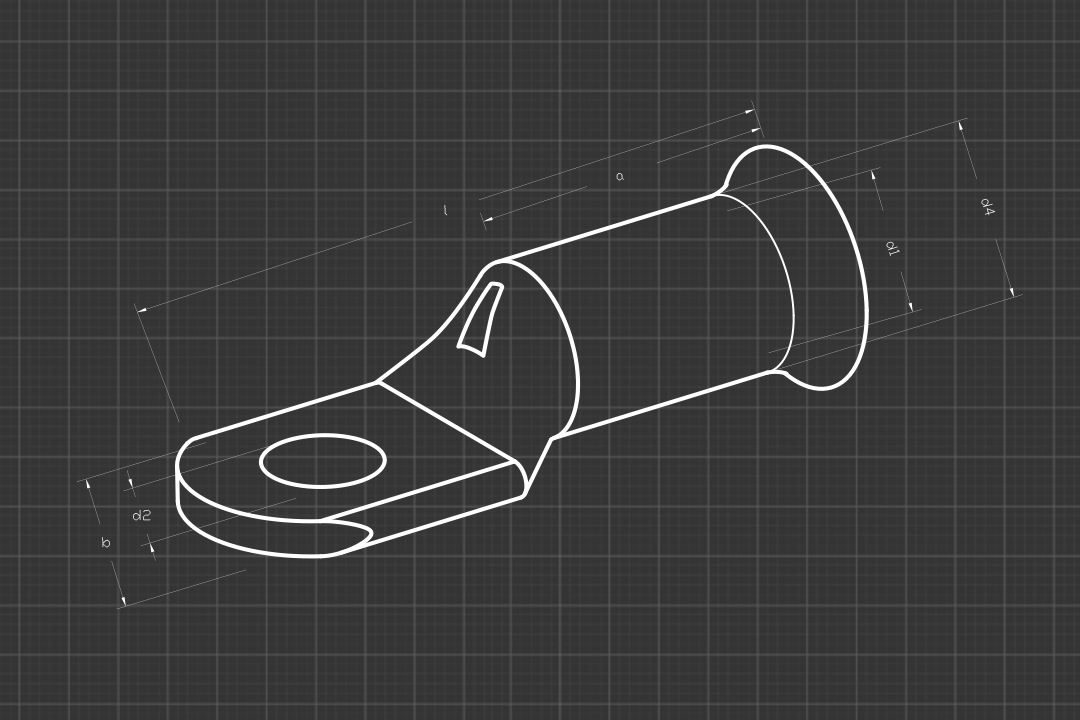

Item No. Conductor
Section
Bolt d1 d2 d4 b a L
TU10-5 10 M5 4.4 5.3 6.9 10.5 9 27
TU10-6 10 M6 4.4 6.4 6.9 10.5 9 27
TU10-8 10 M8 4.4 8.4 6.9 14 10 35
TU10-10 10 M10 4.4 10.5 6.9 16 10 39
TU10-12 10 M12 4.4 13 6.9 18 10 39
TU16-5 16 M5 5.6 5.3 8 11 11 29.5
TU16-6 16 M6 5.6 6.4 8 11 11 29.5
TU16-8 16 M8 5.6 8.4 8 14 11 38
TU16-10 16 M10 5.6 10.5 8 16 11 42
TU16-12 16 M12 5.6 13 8 18 11 42
TU25-5 25 M5 7 5.3 9.5 13.5 13 40
TU25-6 25 M6 7 6.4 9.5 13.5 13 40
TU25-8 25 M8 7 8.4 9.5 13.5 13 40
TU25-10 25 M10 7 10.5 9.5 16 13 44
TU25-12 25 M12 7 13 9.5 18 13 44
TU35-5 35 M5 8.2 5.3 11 15.5 14 41
TU35-6 35 M6 8.2 4.4 11 15.5 14 41
TU35-8 35 M8 8.2 8.4 11 15.5 14 41
TU35-10 35 M10 8.2 10.5 11 15.5 14 45
TU35-12 35 M12 8.2 13 11 18 14 45
TU35-14 35 M14 8.2 15 11 20 14 50
TU50-5 50 M5 9.5 5.3 12.1 17.2 18 46
TU50-6 50 M6 9.5 6.4 12.1 17.2 18 46
TU50-8 50 M8 9.5 8.4 12.1 17.2 18 46
TU50-10 50 M10 9.5 10.5 12.1 17.2 18 50
TU50-12 50 M12 9.5 13 12.1 17.2 18 50
TU50-14 50 M14 9.5 15 12.1 20 18 55
TU50-16 50 M16 9.5 17 12.1 22 18 55
TU70-5 70 M5 11.5 5.3 15 21.2 18 48
TU70-6 70 M6 11.5 6.4 15 21.2 18 48
TU70-8 70 M8 11.5 8.4 15 21.2 18 48
TU70-10 70 M10 11.5 10.5 15 21.2 18 52
TU70-12 70 M12 11.5 13 15 21.2 18 52
TU70-14 70 M14 11.5 15 15 21.2 18 63
TU70-16 70 M16 11.5 17 15 21.2 18 63
TU95-8 95 M8 13.5 8.4 17 24.3 24 58
TU95-10 95 M10 13.5 10.5 17 24.3 24 58
TU95-12 95 M12 13.5 13 17 24.3 24 58
TU95-14 95 M14 13.5 15 17 24.3 24 69
TU95-16 95 M16 13.5 17 17 24.3 24 69
TU120-8 120 M8 15 8.4 19 27.2 27 73
TU120-10 120 M10 15 10.5 19 27.2 27 73
TU120-12 120 M12 15 13 19 27.2 27 73
TU120-14 120 M14 15 15 19 27.2 27 73
TU120-16 120 M16 15 17 19 27.2 27 73
TU120-20 120 M20 15 21 19 27.2 27 73
TU150-8 150 M8 16.5 8.4 21 30 27 78
TU150-10 150 M10 16.5 10.5 21 30 27 78
TU150-12 150 M12 16.5 13 21 30 27 78
TU150-14 150 M14 16.5 15 21 30 27 78
TU150-16 150 M16 16.5 17 21 30 27 78
TU150-20 150 M20 16.5 21 21 30 27 78
TU185-10 185 M10 18.5 10.5 23 33.5 30 82
TU185-12 185 M12 18.5 13 23 33.5 30 82
TU185-14 185 M14 18.5 15 23 33.5 30 82
TU185-16 185 M16 18.5 17 23 33.5 30 82
TU185-20 185 M20 18.5 21 23 33.5 30 82
TU240-10 240 M10 21 10.5 26 37.7 32 88
TU240-12 240 M12 21 13 26 37.7 32 88
TU240-14 240 M14 21 15 26 37.7 32 88
TU240-16 240 M16 21 17 26 37.7 32 88
TU240-20 240 M20 21 21 26 37.7 32 88
TU300-10 300 M10 23 10.5 28 41 37 97
TU300-12 300 M12 23 13 28 41 37 97
TU300-14 300 M14 23 15 28 41 37 97
